Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit
  • Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit
  • Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit
  • Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit
  • Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit
  • Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit
  • Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit
  • Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit
  • Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit

Toyota Corolla Conquest TAZZ 4A-FE 4AFE Engine Overhaul Kit

EOHL2001KT01

Toyota 4A-FE 1.6 Stage 1 Engine Overhaul Kit

Give your Toyota’s rebuild a practical starting point. This OCP kit includes four pistons, a piston ring set, big end bearings, main bearings and a full gasket set, plus FREE silicone and two engine cleaners.

Assembled using economy aftermarket brands for applicable Corolla, Conquest and Tazz 1.6 models. Confirm engine fitment and the required piston, ring and bearing sizes with OCP before ordering.

R3,590.00
R1,795.00 Save 50%
Tax included
Quantity
In Stock

  Secure Cart Checkout

SECURE SSL ENCRYPTION | 3D SECURE CART PAYMENTS

  Delivery policy

FREE DELIVERY OVER R950* | NATIONWIDE SHIPPING

  RETURNS & REFUNDS POLICY

BUY WITH CONFIDENCE | EASY RETURNS POLICY

Description
OCP Stage 1 Engine Overhaul Kit

Keep the Toyota. Rebuild the Engine.

Blue smoke in the morning. Another oil top-up. A familiar hill that now needs a lower gear. When the Toyota you depend on starts showing its age, it is easy to wonder whether its best days are behind it.

If your mechanic has confirmed that an overhaul is the right repair, this Toyota 4A-FE engine overhaul kit brings the key piston, ring, bearing and gasket groups together for a planned rebuild.

A tired engine does not have to mean the end of a good Toyota.

Toyota Corolla, Conquest & Tazz 1.6: Plan the Rebuild With Confidence

An engine overhaul is a big decision, especially when the car still gets you to work, carries the family or earns its keep every day. You need to know what you are buying, why the parts matter and what your mechanic still needs to check.

Assembled by OnlineCarParts.co.za, this Stage 1 kit combines the main replacement component groups listed below in a value-focused aftermarket package. It is intended for applicable Toyota Corolla, Conquest and Tazz 1.6 models fitted with the 4A-FE engine, also written as 4AFE.

It gives you a clear starting point for the parts quotation, with one free silicone tube and two free engine cleaners included.

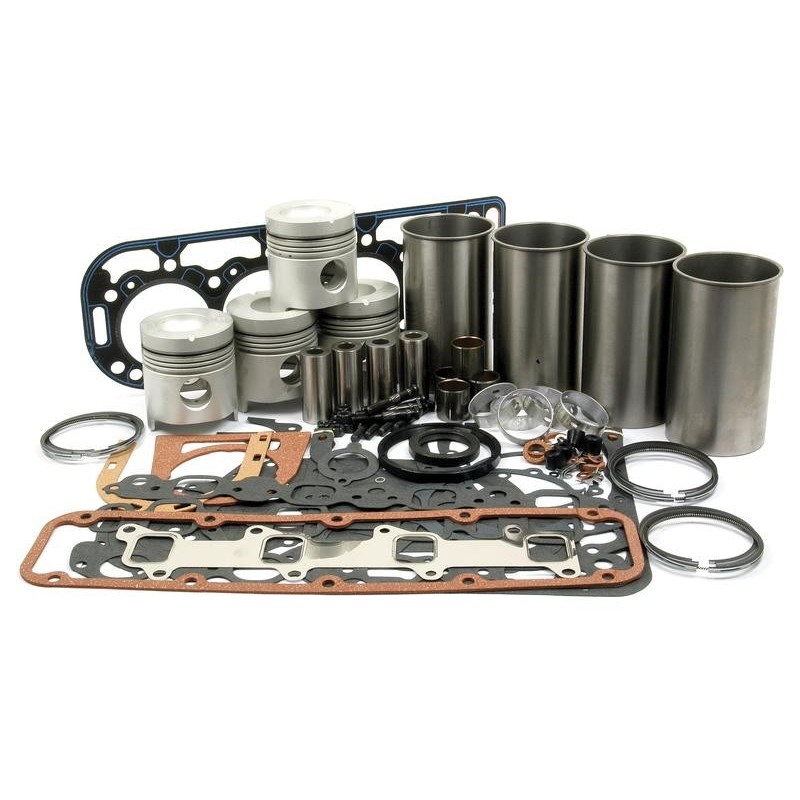

What Is Included in This Toyota 4A-FE Overhaul Kit?

Component What you receive
Piston set 1 set containing 4 pistons
Piston ring set 1 engine set for all 4 cylinders
Big end bearing set 1 engine set for the connecting-rod big ends
Main bearing set 1 engine set for the crankshaft main bearings
Full gasket set 1 set; confirm any specific gasket or seal your workshop requires
FREE silicone sealant 1 tube included
FREE engine cleaner 2 bottles included

Product reference: EOHL2001KT01. A piston set contains four pistons; the ring set covers four cylinders. Bearing and gasket sets contain the individual pieces appropriate to their component group. Photographs are illustrative; the contents listed above define this kit.

Before You Order: Confirm the Engine and the Sizes

Your mechanic should confirm the engine application, piston and matching ring size, big end bearing size and main bearing size. The badge on the boot cannot tell you whether the engine has been rebored or the crankshaft has been ground. Send OCP the workshop’s requirements so fitment and available sizes can be checked.

Why Choose the OCP Stage 1 Package?

When an engine is already coming apart, buying parts one at a time can make the quotation difficult to follow. This package groups the pistons, rings, both bearing sets and full gasket set into one clearly defined purchase, so you and your mechanic can plan around the same list.

This Premium Economy option combines aftermarket brands for owners who need to keep the rebuild budget realistic. Ask us to confirm component brands if your workshop has a preference.

Stage 1 describes the contents level of this kit. Your mechanic’s inspection determines whether this package suits the job or whether a more comprehensive kit and additional components are needed.

Understanding Your Toyota 4A-FE Engine

The 4A-FE is a 1.6-litre, four-cylinder, 16-valve DOHC petrol engine. “DOHC” means double overhead camshafts. Its timing drive uses a belt, an important detail when planning the additional parts for an overhaul.

Vehicle Application check
Toyota Corolla 1.6 Applicable 4A-FE versions; confirm the actual engine and component requirements.
Toyota Conquest 1.6 Applicable 4A-FE versions; confirm the actual engine and component requirements.
Toyota Tazz 1.6 Applicable 4A-FE versions; confirm the actual engine and component requirements.

Engine identification matters more than a similar model name. A Tazz 1.3, a 4A-GE application or a vehicle with an engine conversion must not be treated as an automatic match. Give OCP the details of the engine actually fitted to the car.

What Do These Parts Actually Do?

Pistons: Where Combustion Becomes Movement

The pistons move inside the cylinder bores and transfer combustion force through the connecting rods to the crankshaft. During an overhaul, the workshop assesses piston condition and the fit between each piston and its bore. Correct dimensions matter just as much as fitting new parts.

Piston Rings: Compression and Oil Control

The rings seal combustion gases, help control the oil film on the cylinder walls and transfer heat from the piston to the bore. When sealing deteriorates, gases can escape past the rings and oil control can suffer. Replacing worn rings can form part of the repair, but the rings need a correctly prepared bore to work against.

Big End and Main Bearings: Supporting the Rotating Assembly

Big end bearings sit between the connecting rods and crankshaft; main bearings support the crankshaft in the block. In operation, a film of oil separates the bearing and journal surfaces. The workshop must check journal condition, bearing selection and running clearances. New bearings cannot correct an unresolved oil-supply fault or a damaged crankshaft.

Full Gasket Set: Sealing the Reassembled Engine

An overhaul disturbs sealing joints throughout the engine. The gasket set provides the listed sealing package for reassembly. Your mechanic should check its individual contents against the work being performed and identify any additional seals or fasteners required. Correct surface preparation and tightening procedures remain essential.

Why New Rings Alone May Not Solve Oil Burning

Think of the piston rings and cylinder bore as a working pair. New rings need the correct bore shape and surface finish to seal properly. If the cylinder is worn, tapered, out of round or scored, fitting new rings does not make the cylinder round again.

This is why a proper inspection comes before the parts order. The workshop needs to decide whether the block is suitable for reuse, requires appropriate machining or needs another repair approach, then match the pistons and rings to that decision.

Fresh Parts Need a Sound Foundation

A new ring set cannot undo cylinder wear. The aim is to rebuild around measured, serviceable components rather than replace parts and hope the smoke disappears.

Smoking, Using Oil or Losing Power: Start With the Cause

These symptoms deserve attention, but they do not all point to the same repair. A workshop assessment may include compression or leak-down testing, oil-pressure checks and inspection of the cylinder head and crankcase ventilation system.

Oil consumption can involve the rings and bores, valve-stem sealing, ventilation faults or external leaks. Poor pulling power can also involve ignition, fuelling or timing. Confirm the cause before committing to an overhaul. If internal wear is established and the engine remains suitable for rebuilding, this kit becomes part of a repair plan rather than a guess.

Standard, Oversize and Undersize: What Do They Mean?

Two engines with the same 4A-FE designation can need different repair sizes, particularly if one has been rebuilt before. Here is what your mechanic is checking:

Term What it means for your order
Standard / STD The component is specified for the standard-size application. It still requires measurement and clearance checks; STD is not a universal choice for every used engine.
Oversize pistons and rings Used with an appropriately enlarged cylinder bore. The piston size, ring set and finished bore must agree.
Undersize crankshaft bearings A repair-size designation associated with crankshaft journals ground to a smaller diameter. Big end and main bearing requirements must be checked separately.

Let the Workshop Specify the Sizes

Ask your mechanic or engineering shop for the required piston size, ring size, big end bearing size and main bearing size. OCP can then confirm what can be supplied. A VIN may help identify the vehicle, but it cannot reveal previous internal machining.

While the Engine Is Open, Plan the Rest of the Job

The labour involved in opening an engine makes this the right time to assess associated wear and address the cause of the original failure. Ask your workshop to include the following checks in its quotation:

  • Timing belt and tensioning components: inspect and renew as required. Timing components are additional to this kit.
  • Oil pump, pickup and oil passages: check condition and cleanliness, especially after bearing damage or low oil pressure.
  • Water pump, thermostat and radiator: assess the cooling system and correct any overheating cause before the rebuilt engine returns to service.
  • Cylinder head and valve gear: assess the head, valves, guides and sealing requirements. A bottom-end repair does not automatically resolve cylinder-head wear.
  • Oil, filters, plugs and coolant: include suitable service items and fluids so the engine is commissioned with the correct supplies.

Machining should follow inspection and the applicable repair limits. The head and crankshaft should not automatically be skimmed or ground simply because the engine is apart.

A Clear Rebuild Budget Means Fewer Surprises

Ask for a quotation covering parts, engineering work, workshop labour, fluids and the additional items identified during inspection. This Stage 1 kit covers the components in the contents table; pumps, timing parts, service items and other damaged components are separate purchases.

If your workshop requires a wider package, ask OCP about the more comprehensive overhaul-kit options for this engine application.

Useful Additions to Your Rebuild Order

Prefer Victor Reinz Reinzosil for Your Sealing Work?

A silicone tube is already included free. If your workshop prefers Victor Reinz Reinzosil, add it as a separate purchase for suitable sealing applications. Use sealant only where specified and follow the product’s application and curing instructions.

Victor Reinz Reinzosil silicone sealantView Victor Reinz Reinzosil

Finish the Rebuild With the Right Service Filters

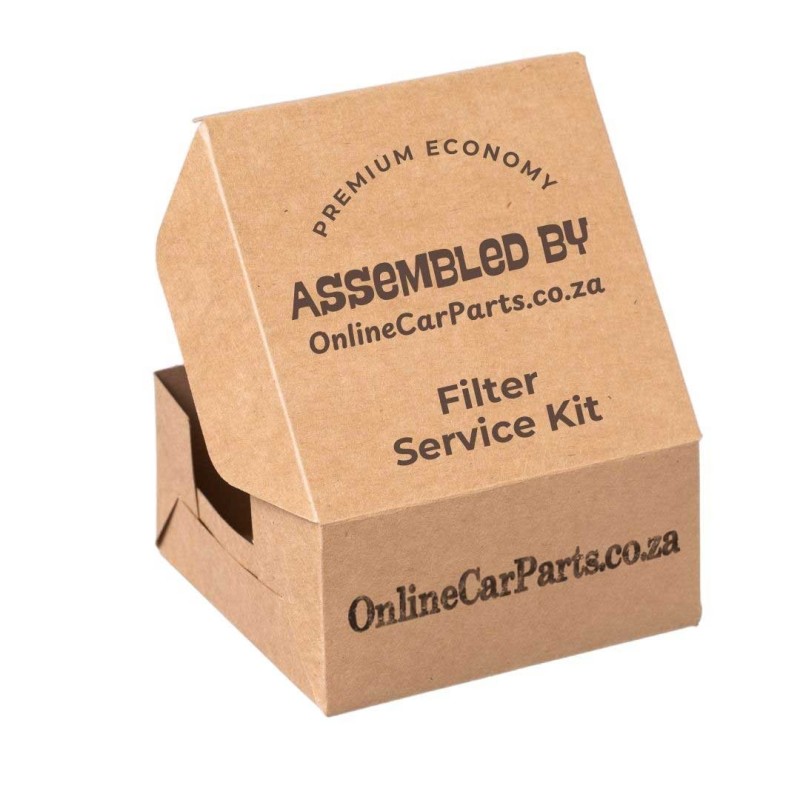

Consider the linked Toyota Corolla III 160i 1996–2002 4A-FE filter service kit. Confirm its fitment for your vehicle before adding it, particularly for a Conquest, Tazz or an engine conversion.

Toyota Corolla III 160i 4A-FE filter service kitView the Corolla 4A-FE Filter Service Kit

The First Start Matters Too

Have a competent mechanic follow the applicable Toyota repair procedures and supplied component instructions. The lubrication system must be prepared before startup, and the cooling system filled and bled correctly. Use the specified coolant; dilute concentrate as directed and do not dilute premixed coolant.

Agree the running-in and follow-up service plan with your engine builder before collecting the vehicle. Knowing when to check oil and coolant, return for inspection and change the oil helps you look after the work you have paid for.

Frequently Asked Questions

Will this kit stop my Toyota from smoking?

It can form part of the repair where the diagnosis identifies wear in the components covered by the kit. Smoke alone cannot establish the cause. Your mechanic needs to check the engine and resolve any additional faults.

Does it fit every Corolla, Conquest or Tazz 1.6?

Fitment must be confirmed for the actual engine and component specification. Older vehicles may have engine conversions or previous internal repairs. Send OCP the engine details and workshop size requirements.

Can I just order standard size?

Only if your workshop has confirmed standard-size components are correct. Previous boring or crankshaft grinding changes the required parts. The piston/ring, big end and main bearing sizes should each be specified.

Does the kit include the oil pump, water pump or timing belt?

The kit contains the components and free extras listed above. Pumps, timing components, fluids, labour and engineering work are additional.

Are these Toyota Genuine Parts?

This is an aftermarket package assembled by OnlineCarParts.co.za using its Premium Economy component selection. Ask OCP to confirm the supplied brands if your mechanic has a preference.

What should I send OCP for help?

Send the vehicle model and year, engine identification and your mechanic’s piston, ring and bearing size requirements. Photographs or existing part references may help where further application checks are needed.

Give Your Toyota Its Next Chapter

If the rest of the car is worth keeping and your workshop has confirmed a rebuild is sensible, give the job a clear starting point. The OCP Stage 1 Toyota 4A-FE Engine Overhaul Kit brings the key internal replacement groups together, with free silicone and two engine cleaners included.

Confirm the engine. Confirm the sizes. Order with a plan.

Call 010 970 6009 or WhatsApp Sales:

069 777 0 777  |  069 777 2 777

Quote EOHL2001KT01 and have your mechanic’s requirements ready.

Nationwide Door-to-Door Delivery
Online Car Parts South Africa



Product Details
EOHL2001KT01

Data sheet

Recommendation
It is advisable to do a minor service with this overhaul kit. Change plugs, air filter, oil filter, fuel filter and oil.
Installation Note 1
Make sure your cylinder head and crankshaft are machined.
Installation Note 2
It is advisable to change your thermostat, water pump and oil pump with this kit
Installation Note 3
You may also change your timing belt kit which includes tensioners for a quiter engine.
Installation Note 4
Always flush your radiator and use deionised water and coolant immediately after the engine overhaul. This will prolong the longevity of your cooling system.
Installation Note 5
Use a quality Oil and Oil Filter
