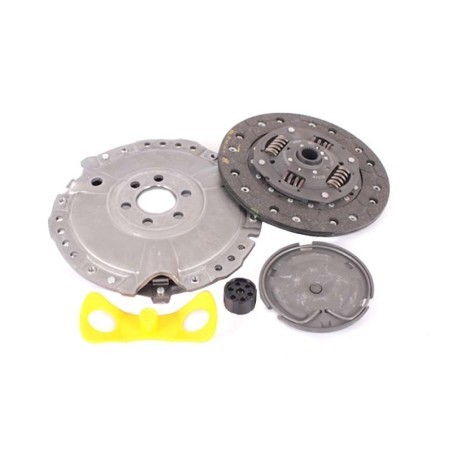

VW CITI GOLF 1.6 3 96-99 Clutch Kit

Data sheet

Clutch Disc Diameter Ø [mm]

200

Clutch Centering Diameter Ø [mm]

20.6

Clutch Disc Spline Count

24

Clutch Disc Reference

3 020 VA3 00

Pressure Plate Reference

1 021 V01 10

Release Bearing or Concentric Slave Bearing Reference

5 001 V00 00 | 1 914 901 02 | 1 165 916 00

Remarks

OD-Located cover assembly with single Flywheel dowel pin location

Cross Reference 1

R203MK

Warranty Exclusions 1

Mishandling during transport and storage

Warranty Exclusions 2

Failure to re-machine (skim) single-mass flywheels to manufacturer standards. In the event of a claim, we may request the job card and/or the receipt for the re-machining (skimming).

Warranty Exclusions 3

Failure to replace a single-mass or dual flywheels where this is specifically recommended or required.

Warranty Exclusions 4

Incorrect Fitment

Warranty Exclusions 5

Failure to identify and repair other vehicle faults which may affect correct operation

Warranty Exclusions 6

Failure to use the correct kit as supplied

Warranty Exclusions 7

Incorrect Driving Practice

Warranty Exclusions 8

Fitment to incorrect or unauthorized vehicle applications

Warranty Exclusions 9

Any fitment to a vehicle which has been converted in any way to enhance performance, including but not limited to Turbo Upgrades or chipping

Warranty Exclusions 10

Any motorsport or competitive use

Warranty Exclusions 11

Fitment by an unqualified technician or mechanic. Technician accreditation maybe requested in the event of a claim.
